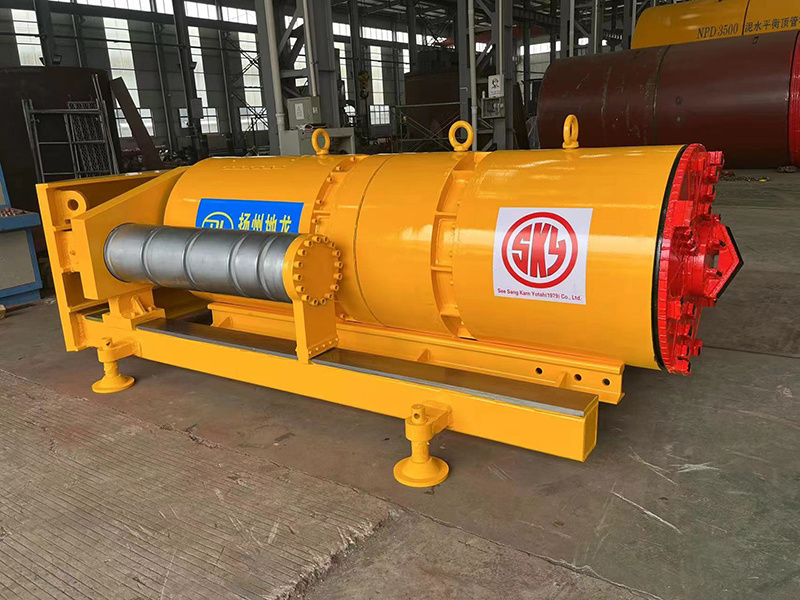

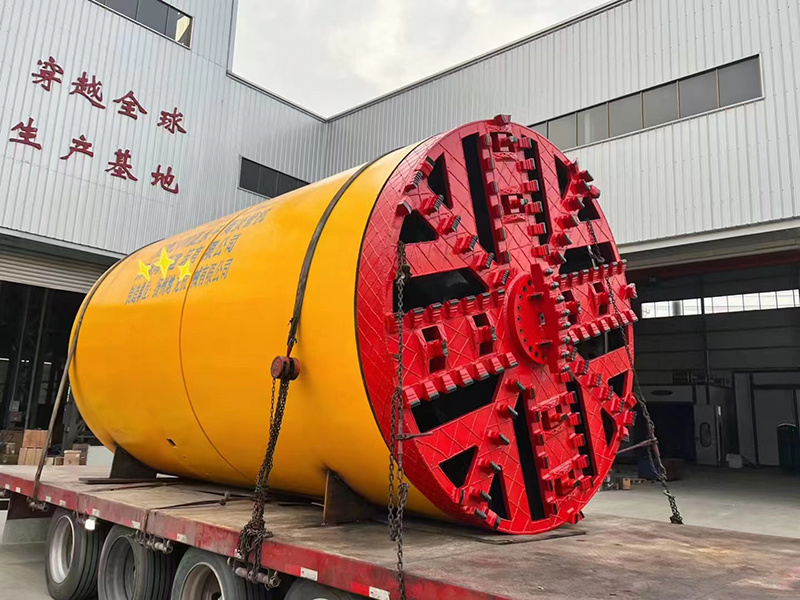

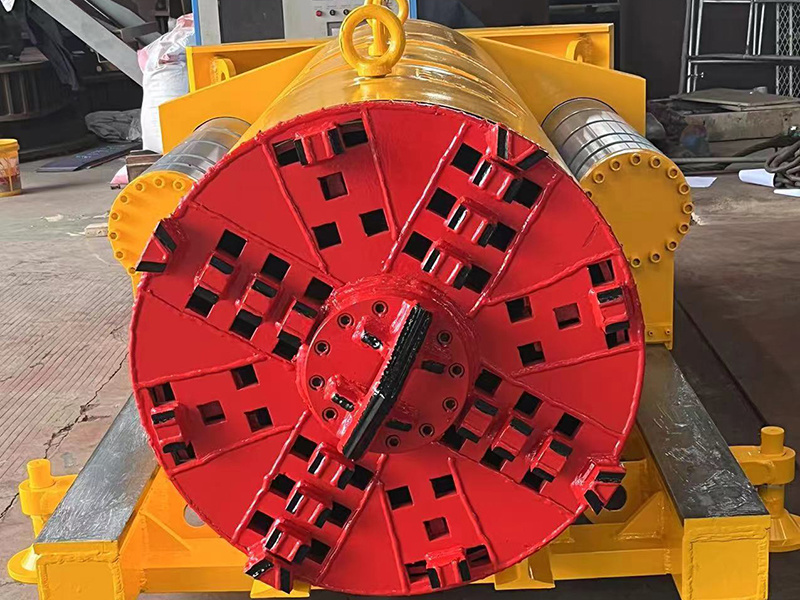

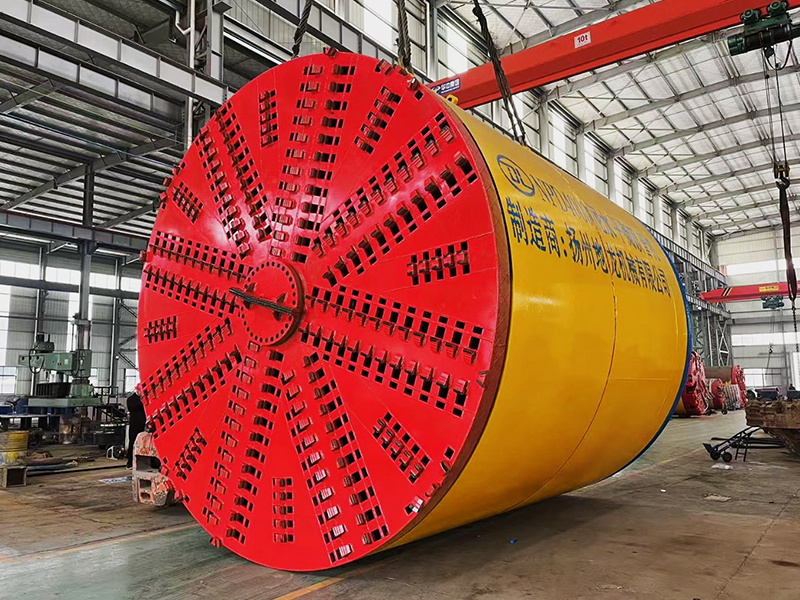

Mud Water Balance Pipe Jacking Machine

Characteristics:

1.Wide applicable various soil, such assoft soil,clay, sand, gravel soil, hard soil,backfill . etc.. 2.Independent water injection,discharge system. 3.The fastest speed is nearly 200 mmper minute. 4.The construction of high precision,right, and the most steeringangle of 5.5degrees. ​​​​​​​5.Use the central control system on theground,safe, intuitive, and convenient.
  • Description
  • Diameter
    (mm)
    Dimensions
    ΦD×L (mm)
    Weight
    (t)
    Cutter disk
    Steering cylinder
    (kN×set)
    Internal pipei
    (mm)
    Power(kW×set) Torque(kN·m) rpm

    NPD800

    1020×3400

    5

    2×11

    70

    3

    380×4

    100

    NPD1000

    1220×3500

    6.5

    2×15

    120

    2.4

    480×4

    100

    NPD1200

    1460×3600

    8

    2×22

    140

    2.4

    480×4

    100

    NPD1350

    1640×3800

    10

    2×30

    248

    2

    630×4

    100

    NPD1500

    1820×3900

    14

    2×30

    248

    2

    630×4

    100

    NPD1650

    2000×4000

    16

    2×37

    260

    2.9

    800×4

    100

    NPD1800

    2180×4000

    20

    3×30

    480

    1.8

    800×4

    100

    NPD2000

    2420×4400

    24

    4×30

    580

    2

    630×8

    150

    NPD2200

    2660×4600

    28

    4×37

    600

    2.4

    800×8

    150

    NPD2400

    2900×4800

    36

    4×37

    600

    2.4

    800×8

    150

    NPD2600

    3140×4900

    42

    4×37

    600

    2.4

    1000×8

    150

    NPD3000

    3620×5000

    50

    6×37

    1400

    1.55

    2000×8

    150

    NPD3500

    4160×5200

    70

    6×37

    1400

    1.55

    2000×8

    150

    NPD4000

    4820×5400

    80

    8×37

    1850

    1.55

    2000×8

    150



Keywords:

Mud water balance pipe jacking machine, soil pressure balance pipe jacking machine, rock pipe jacking machine, sand and gravel pipe jacking machine, rectangular pipe jacking machine, small shield tunneling machine
