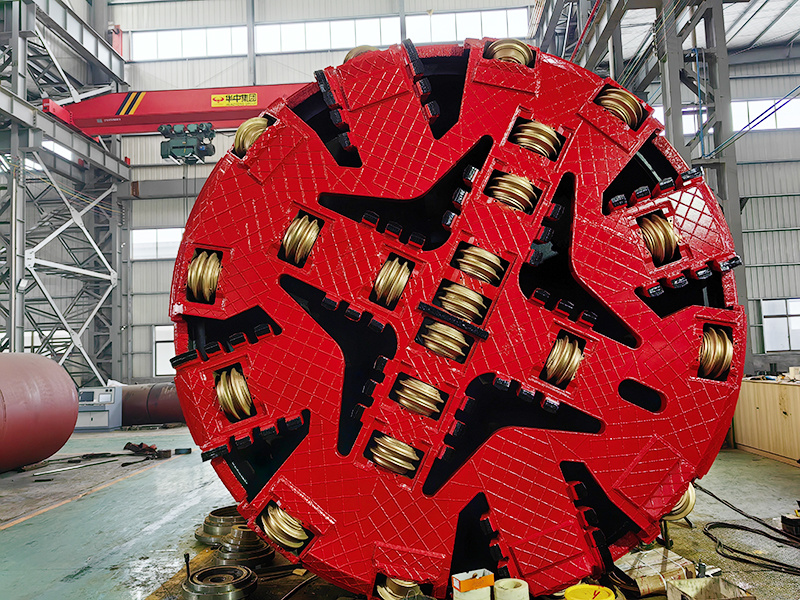

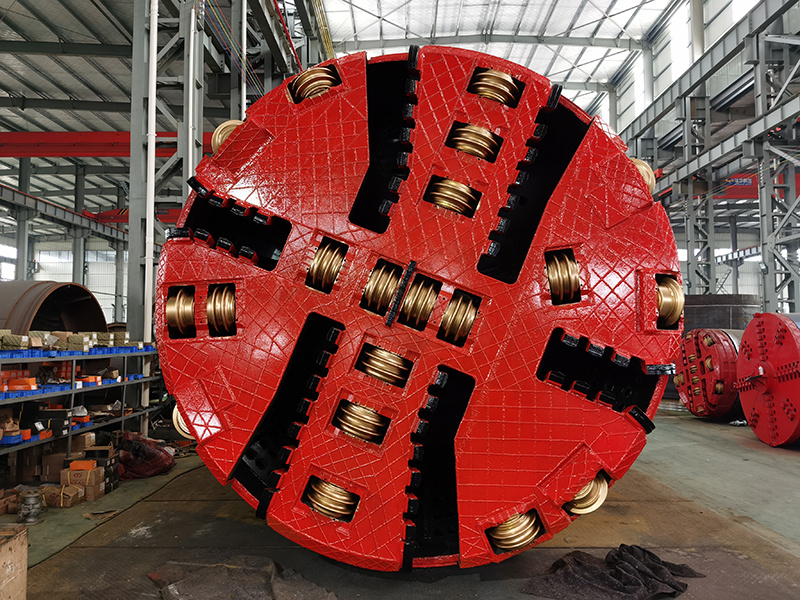

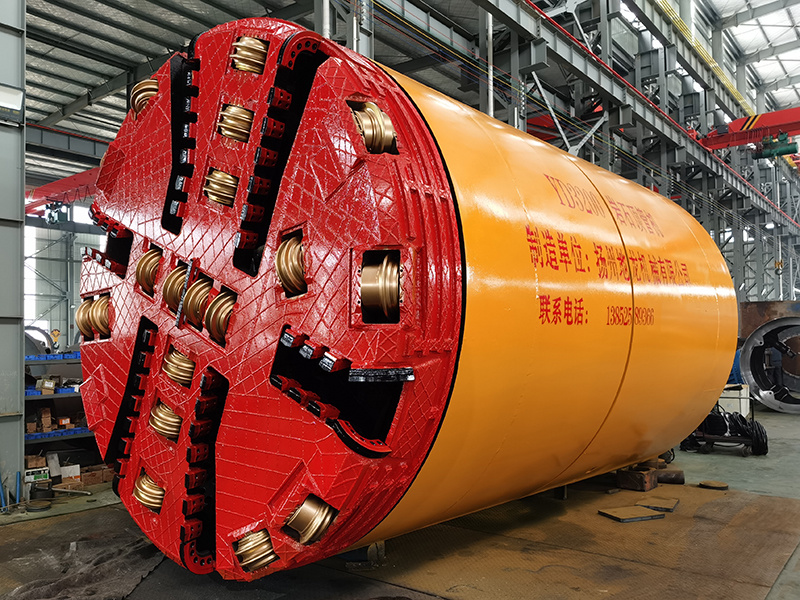

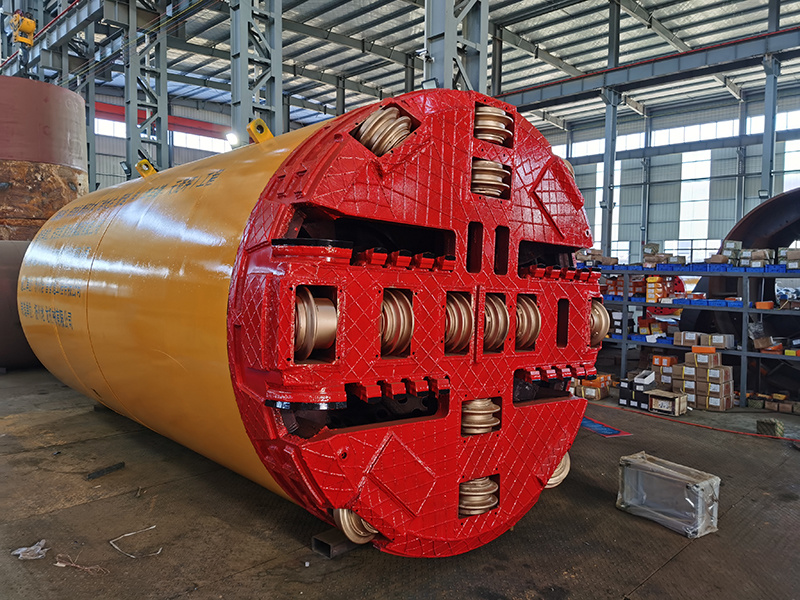

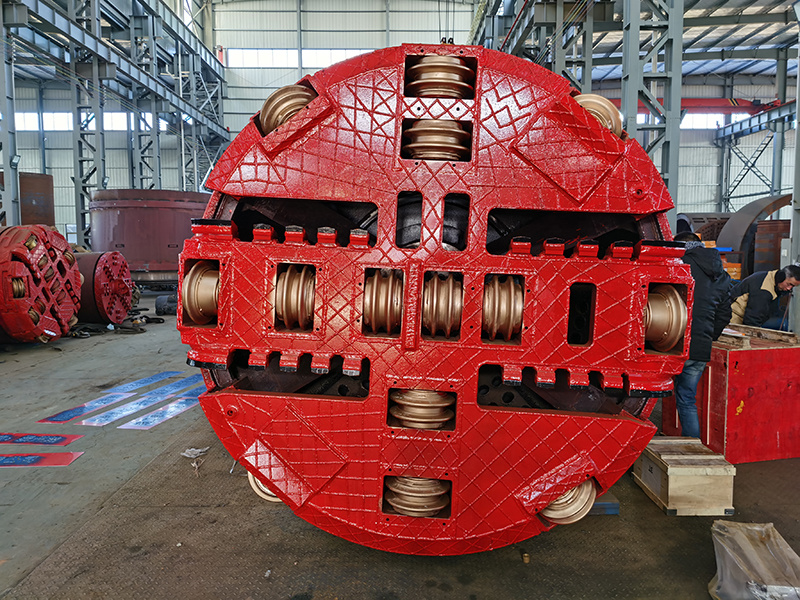

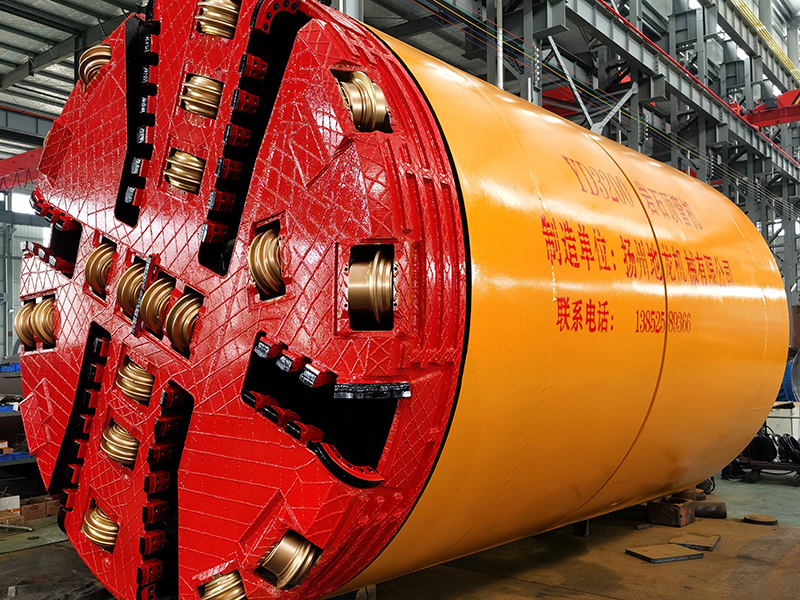

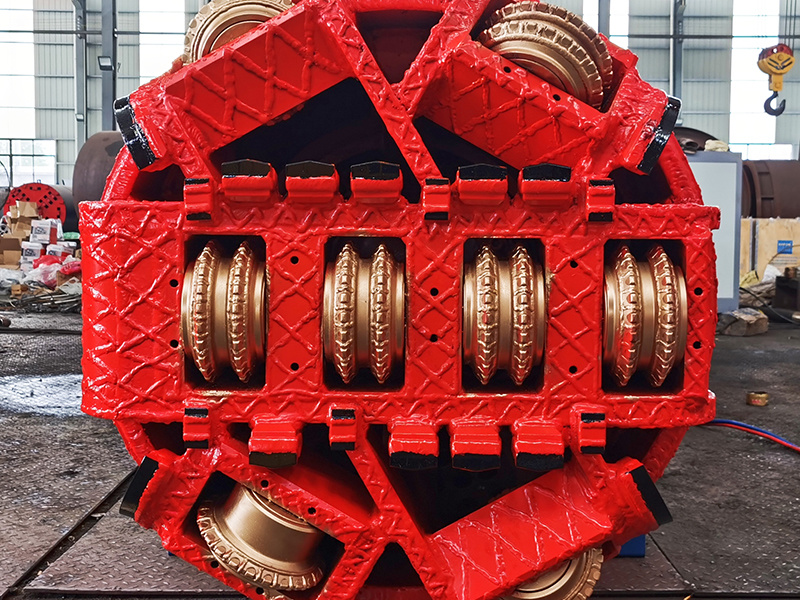

Rock Pipe Jacking Machine
Characteristics:
1.Cutter bit, when worn out, can be replace frominside of the machine,so suitable for longdistance pipe jacking construction of rock.
2.Suitable for ordinary soil layer to the iantboulders, bedrock and mixed soil.rockhardness, 50-200 Mpa.
3.Internal cone crushingplant can be nsecondary crushing effectively.
4.The ground computer control.
- Description
-
Diameter
(mm)Dimensions
ΦD×L(mm)Weight
(t)Power
(kW×set)Torque
(kN·m)rpm Steering Cylinder
(kN×set)Internal pipe
(mm)YD800 1020×4400 7 1×30 62 4.7 380×4 100 YD1000 1220×4400 9 2×15 120 2.4 630×4 100 YD1200 1480×4900 14 2×30 170 3.5 630×4 100 YD1350 1670×4900 17 2×37 210 3.5 800×4 100 YD1500 1880×5100 21 2×45 290 3 1000×4 100 YD1650 2040×5200 24 2×55 320 3.3 1000×4 150 YD1800 2180×5200 28 4×37 330 3.5 630×8 150 YD2000 2460×5200 34 4×37 600 2.4 800×8 150 YD2200 2660×5200 40 4×37 600 2.4 800×8 150 YD2400 2900×5400 50 4×45 645 2.7 1000×8 150 YD2600 3140×5700 60 6×37 1400 1.55 1200×8 150 YD3000 3630×5900 75 8×37 1850 1.55 2000×8 150 YD3500 4160×6000 90 8×45 1800 1.94 2000×8 150 YD4000 4830×6100 110 8×55 2200 1.94 2000×8 150 YD4600 5400×6300 150 8×55 2200 1.94 2200×8 200
Keywords:
Mud water balance pipe jacking machine, soil pressure balance pipe jacking machine, rock pipe jacking machine, sand and gravel pipe jacking machine, rectangular pipe jacking machine, small shield tunneling machine
